Multi Level Staves Sorting System with GANTRYX Stacker - High capacity

Designed to overcome lack of space and manpower, this system facilitates the sorting of parts required for production by companies that cut and process wood panels for subsequent gluing. For example, stair treads and table manufacturers.

1 year warranty
Request a quote Print

The Multi Level Staves Sorting System with GANTRYX Stacker allows you to save floor space, to automate the whole process while increasing its speed, and to considerably reduce human intervention.

The system's main functions:

  • Allows to sort and stack up to 50 pieces per minute;
  • Sort pieces by selecting different options such as the width of the row, the face chosen for stacking, etc.
  • Reduce space requirements on the floor, using a stepped conveyor for very stable stacking of the rows without the need for wooden slats.
  • Stack and unstack materials fully automatically.

To find out more about the GANTRYX, please see the product information page.

See The Multi Levels Staves Sorting System with GANTRYX Stacker in action in the video.

Sorting with multiple row layers

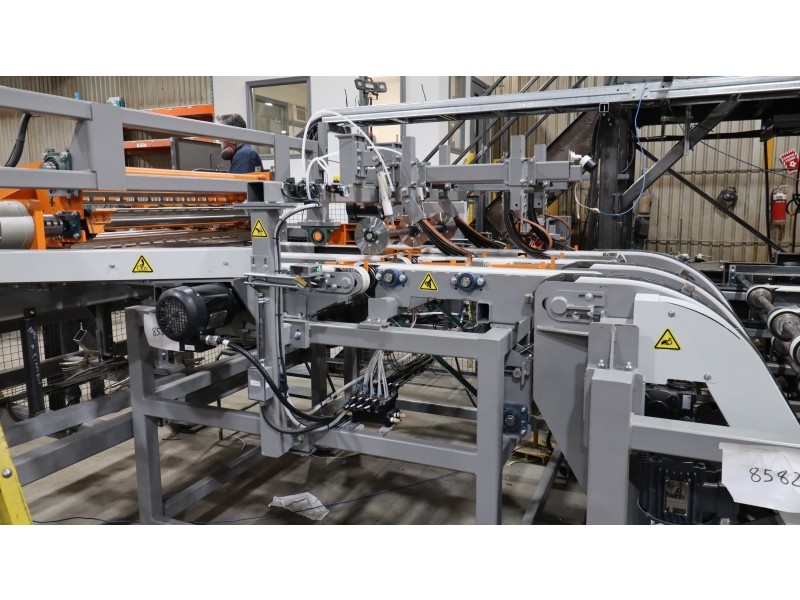

Other angle: sorting with multiple row levels

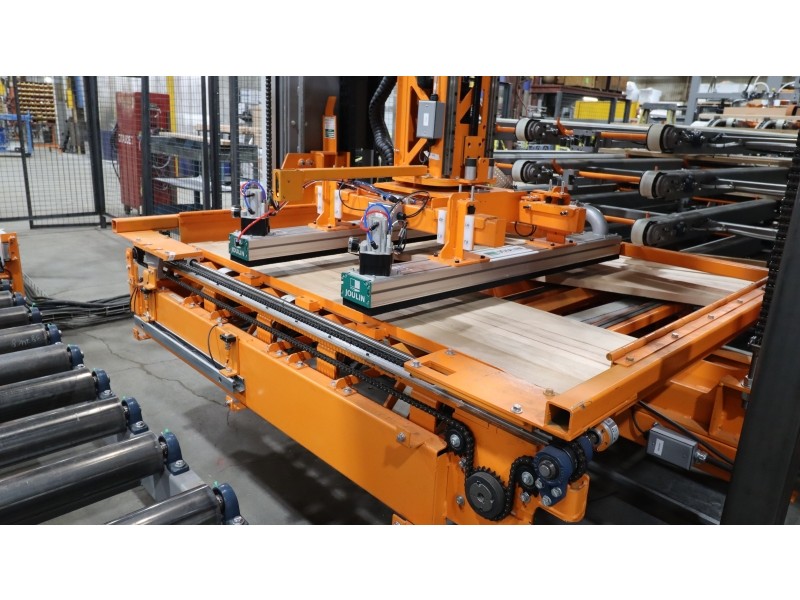

Row spacing system
Gantryx in action
Other angle : Gantryx in action
Sorting with multiple row layers
