Custom CNC Line for Doors with Automatic GANTRYX Loading and Unloading

Discover a custom CNC solution designed for door manufacturing, equipped with the GANTRYX system for fully automated loading and unloading. This high-performance line delivers speed, precision, and flexibility with multiple integrated tooling options customized to your production needs.


1 year warranty
Request a quote Print
  • Automatic door loading using vacuum gantry system (GANTRYX)
  • Queuing conveyor to optimize production flow
  • Automatic door positioning before machining
  • Dual scanners to read door dimensions and detect bowing or warping
  • Operations selected via HMI or SQL-based file input
  • Automated unloading with door rotation according to left or right opening
  • Inkjet marking on the door edge for clear identification
  • On-demand inspection mode
  • Automated loading and unloading = reduced handling and time savings


Main System Functions

  • Tool #1: hinge pocket mortising
  • Tool #2: one or two doorknob holes (both directions) and edge pocketing
  • Tool #3: peephole centered at user-defined height

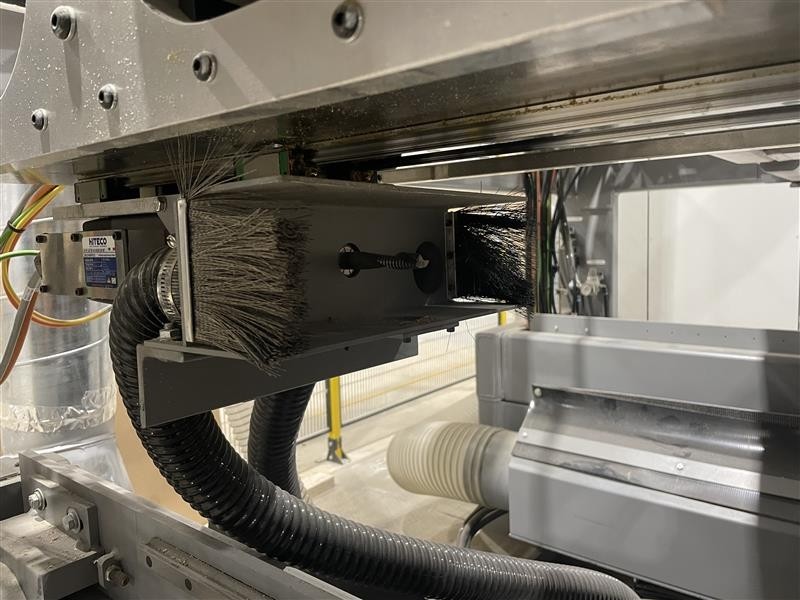

  • Tool #4 and #5: groove at the bottom of the door for noise dampening insert. Active tooling is selected whether it is a left or right-handed door.
  • All four tools can operate in a single cycle — maximizing speed and accuracy
  • Over 20 servo-powered axes for precise movement of the four tooling units
  • Cycle time: less than two minutes per door with full operation set

This custom CNC line with GANTRYX gantry system offers a turnkey solution for residential and commercial door production. Its strength lies in combining up to four operations in one cycle — delivering faster results and consistently high-quality machining. With its high level of automation, the system minimizes downtime and manual handling.

Our team is always available to discuss your specific needs and help design a fully customized solution for your door applications.

Learn more about the GANTRYX system.

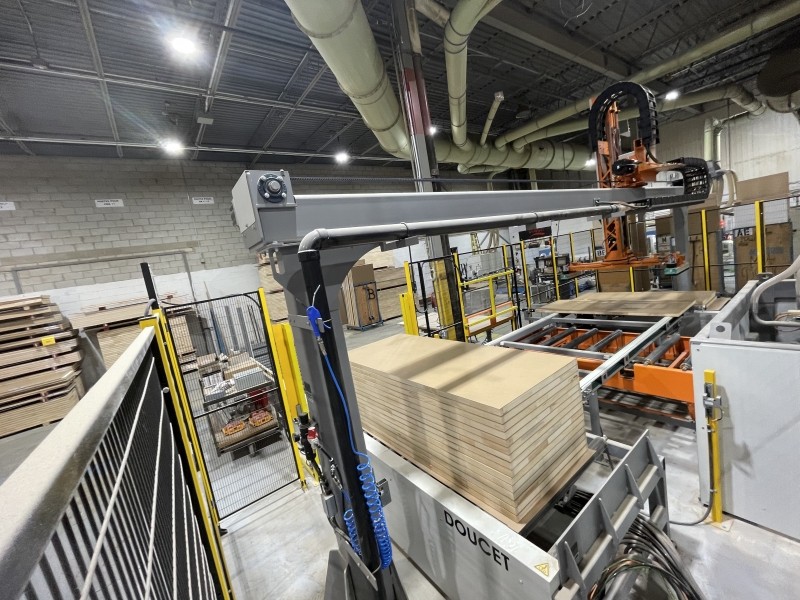

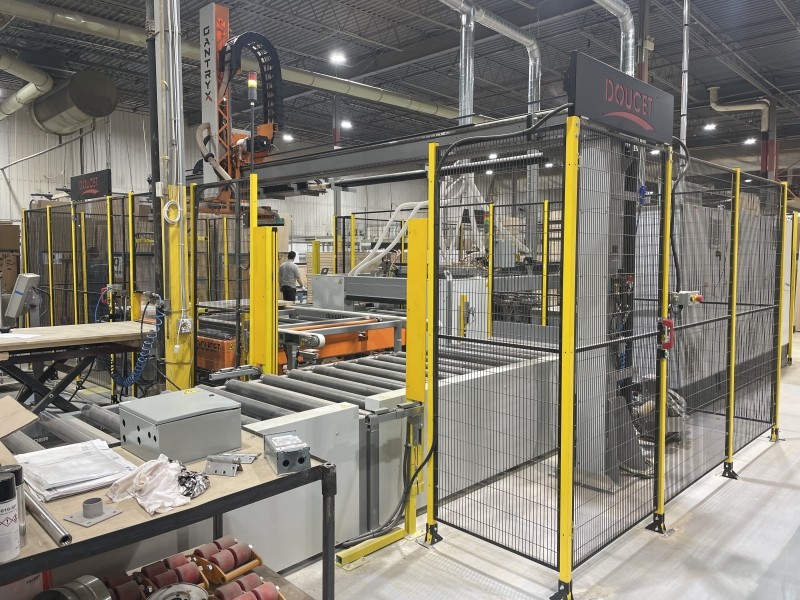

GANTRYX loading/unloading area
GANTRYX loading/unloading area
