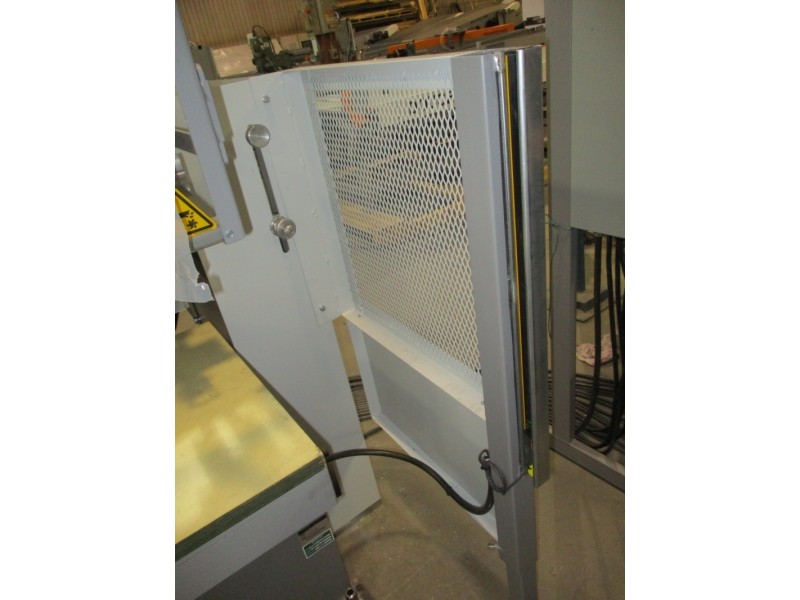

J30 - Safety Beam with Muting Sensors

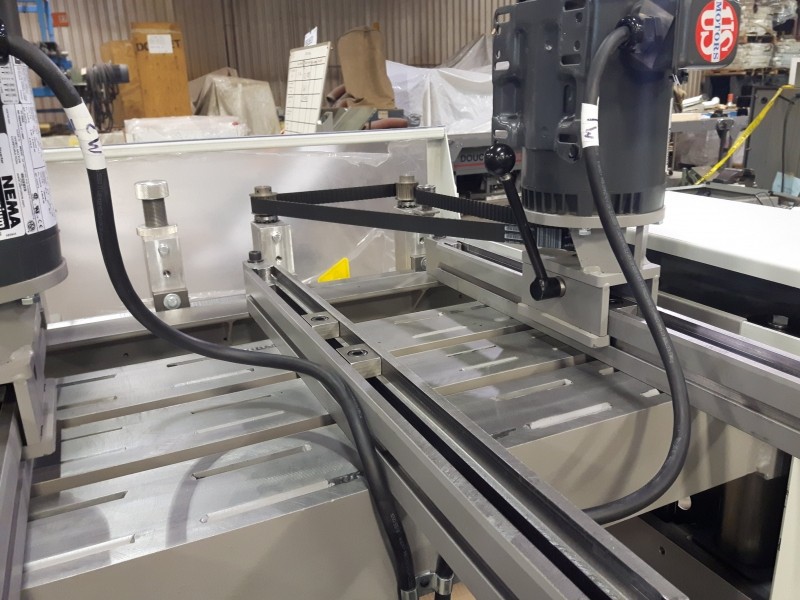

J30- Adjustment Arm

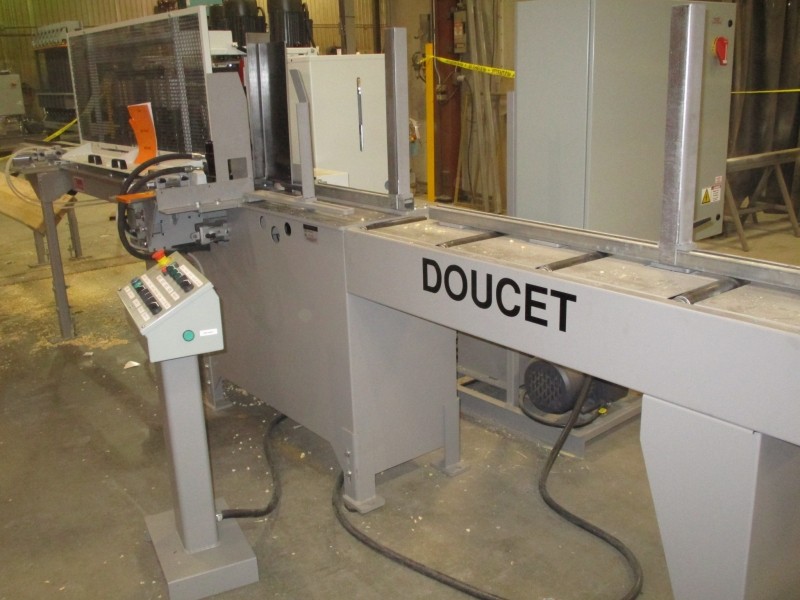

J30- with Feeder

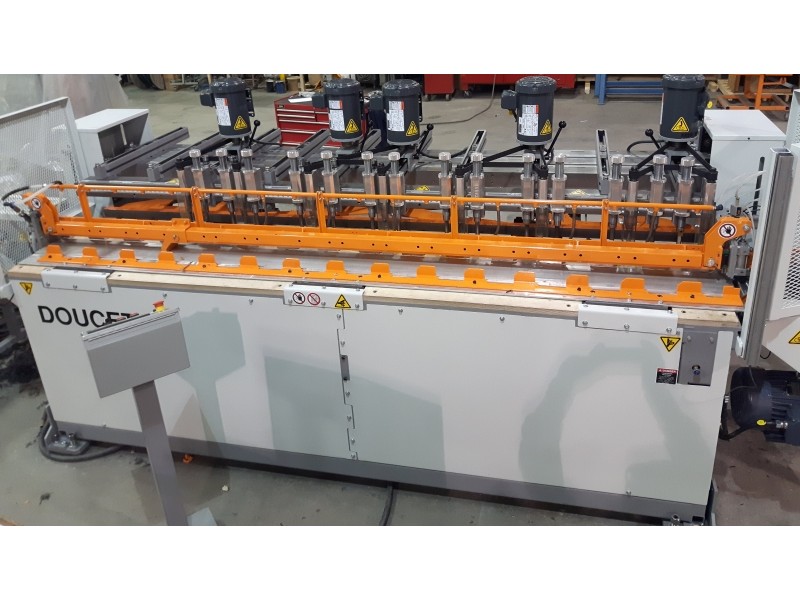

J30- with Infeed and Outfeed

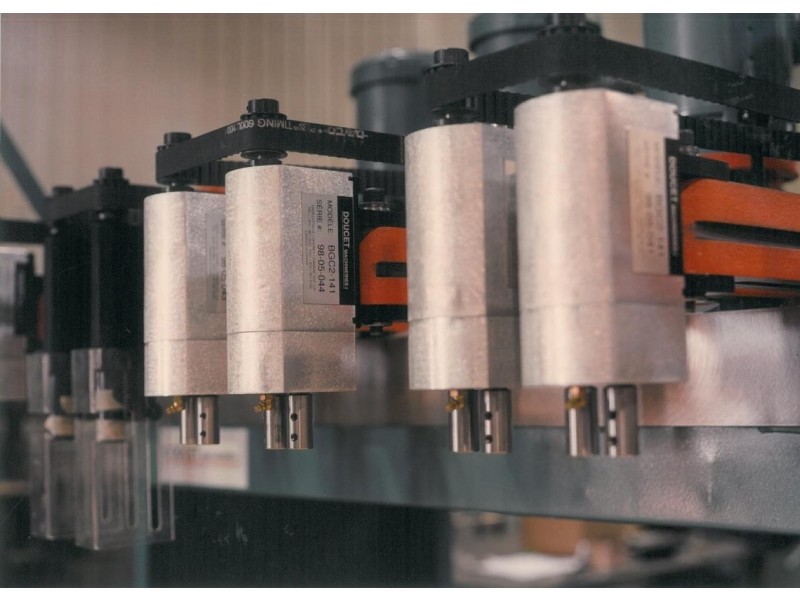

J30- Multi-Spindle Cluster
J30 - Hydraulic Vertical Boring
  • The J30 Vertical Boring Machine is equipped with a fixed wooden table. On the J30, vertical boring heads with spindles move up and down. Since its table is fixed, the machine can be equipped with an automatic feeding device.
  • The basic machine includes: main body, spindle carriage having a maximum travel of 8", a 24" wide wooden fixed table of lengths specified above, hydraulic power unit, electrical control system, cycle foot switch and safety guard.
  • The J30 is available in 4, 5, 6, 8 and 10 feet widths.

As an option, the J30 can be equipped with individual boring units mounted at one end of the table. Vertical spindles and hold-downs can be mounted on individual arms, on a dovetail beam or a combination thereof. The boring depth and feed speed of the spindle carriage are widely adjustable.

For added flexibility in the boring patterns, spindles and/or clusters are belt driven and powered by 1, 1.5 or 2 HP three phase motors 220, 440 or 600 volts / 60 cycles.

ACCESSORIES

  • 1 ½" diameter, set screw lock-type spindle
  • 1 ½" diameter, spindle with spring collet
  • 1 ½" diameter, spindle with 3/8" capacity Jacobs chuck
  • 1 ½" diameter, spindle with ½" capacity Jacobs chuck
  • 1 ½" diameter, spindle with threaded 7/16" - 14
  • 2" diameter, set screw lock-type spindle
  • 2" diameter, spindle with spring collet
  • 2" diameter, spindle with ½" capacity Jacobs chuck
  • 2" diameter, spindle with threaded 7/16" - 14
  • Cluster with fixed centers
  • Hydraulic spindle for end boring
  • Dovetail beams
  • Templates
  • Spring loaded hold-down with or without 24" long adjustment arm
  • Special arm
  • Special motors
  • Additional control
  • Fast approach of the head
  • Automatic feeder
  • Clean-up cycle
