SPFM High Production End-Matcher

The End-Matcher model SPFM is designed for high production. Suitable for production of 20,000 to 30,000 board feet of random length Strip or Plank Flooring per shift.
1 year warranty Request a quote
SPFM High Production End-Matcher
SPFM - General View
SPFM - Even-Ended Roller
SPFM - Fully Enclosed Machining Centers with Safety Locking Switch

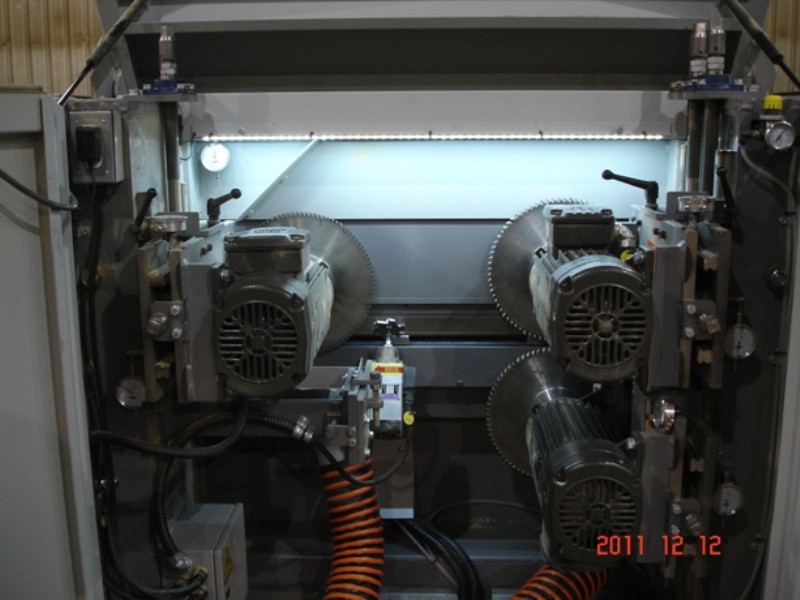

SPFM - Tongue Machining Center

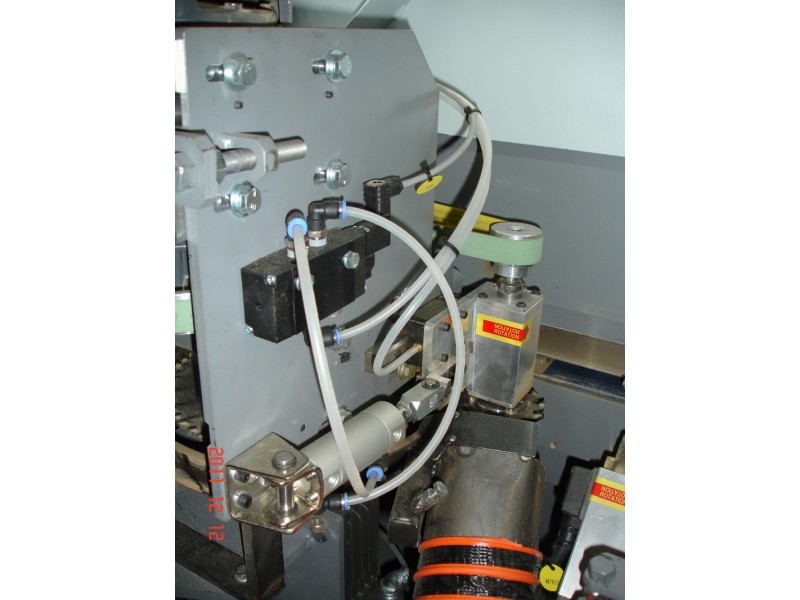

SPFM - Jump Scoring Saw

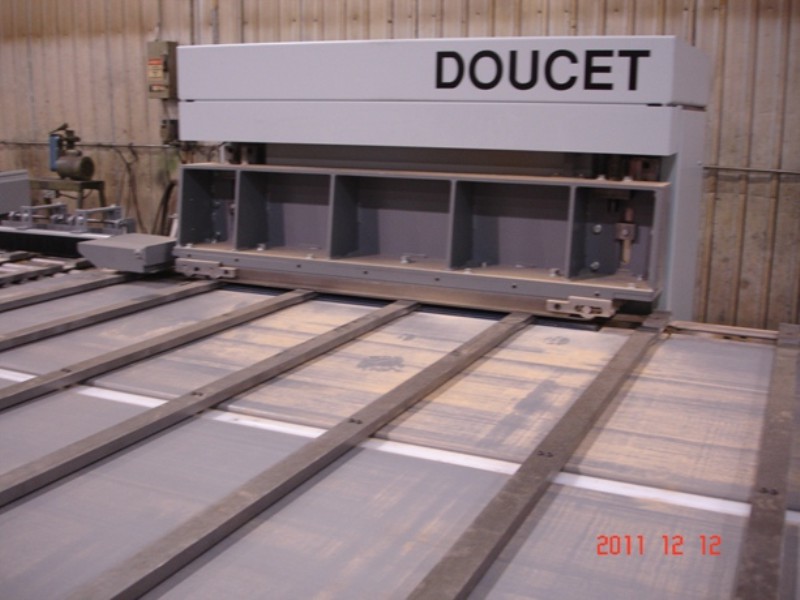

SPFM - Soft Touch Hold Down
SPFM - Groove Machining Center
SPFM High Production End-Matcher

The End-Matcher model SPFM is designed for high production. Suitable for production of 20,000 to 30,000 board feet of random length Strip or Plank Flooring per shift.

SPECIFICATIONS

  • High precision ductile iron chains, hardened steel sprockets, massive traverse bars
  • 20 HP electric motor with a variable speed drive up to 80 feet per minute
  • 5 HP spindle motors
  • 9 inches center to center standard traverse bar spacing
  • Fully enclosed machining centers, all adjustments made easy be dial indicators
  • Dynamic braking on all spindle motors
  • Electronically controlled chain lubrication system

For more specifications, see the brochure.

  • Feed conveyor extension for cut-off saws or feed stations
  • "Soft touch" hold-downs for pre-finished flooring
  • "Open end-matching" stations
  • Automatic Positioner: it reads marks placed on the part (by printer or manual placement) and mechanically positions the part correctly and precisely in front of the trim saw blades
  • Upstream and downstream material handling systems
  • 25 HP variable drive electric motor
  • Traverse bar spacing 6 or 12 inches on centers
  • Even-ended roller to accommodate up to 10 feet long material
  • Tooling system for regular or beveled top end-matching
  • Custom scoring and micro-bevel attachments
  • Front exit system, grading and nesting stations
  • Jump Scoring Saw - tongue machining center: a jump scoring saw to prevent tear out on the top front corner on tongue side, powered by trim saw motor - applies to square top or micro-bevel
  • Jump Scoring Saw - groove machining center: a jump scoring saw to prevent tear out at the intersection of rear groove and end groove, powered by a 1 HP motor
