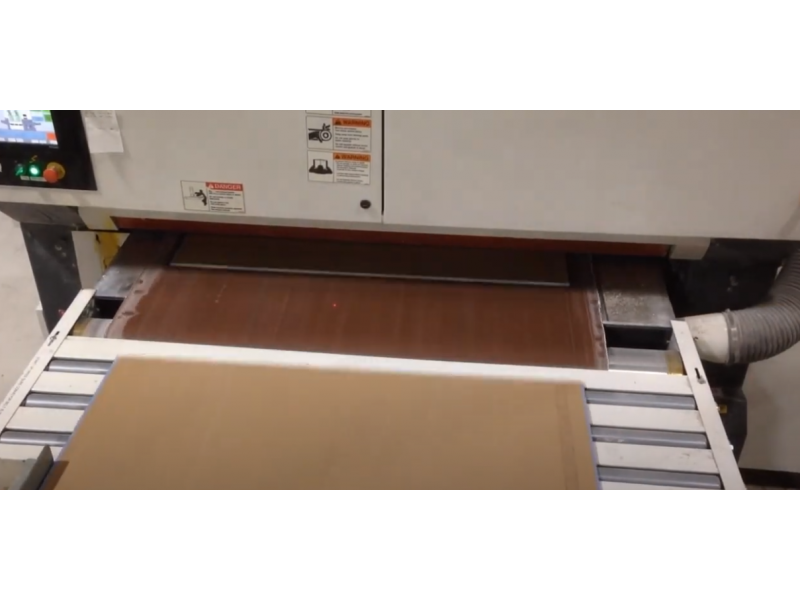

Panel Lamination Material Handling

System is designed to unstack panels from two different blundles and then sequence them into the adequate queue to feed them into a wide belt sander. Coming out from the sander, the panel flow is divided to apply glue on half of the panels. Then a flipping arms mechanism is re-introducing the non-glued panel over the pre-glued panel to create the laminated assembly before it enters into a press. Following the press, laminated assemblies get paired by group of two and stacked for shipment purposes.

The system's main functions:

System is designed to unstack panels from two different bundles before sequencing them into the proper queue of material;
Incoming alternate panels need to be flipped upside down for processing;
Coming out from the sander (or conveyor), the panel flow is divided to apply glue on half of the panels before joining two panels together to create the laminated assembly;
Following the gluing process, assemblies enters a press to activate the contact glue and give final thickness of the laminated assembly;
Assemblies get paired in group of two, end taped and stacked into a bundle for delivery.

The line features differents equipments like:
