CAT - Cover Assembling Table

After cutting for fishtail, Doucet offers the CAT clamping table for assembling the fishtail and crown together. The assembly table is using reference points to hold the parts during the gluing and nailing operation. The casket cover is assembled upside down.

1 year warranty
Request a quote Print

Downloadable documents

BROCHURE | CAT - Cover Assembling Table
  • References used to place the long part are pneumatic centering clamps, one at each end of the long side and two supports in UHMW to place in height the long part. In order to accommodate the variety of widths and heights, different adapter kits are provided to fit on the pneumatic centering clamps.
  • References used to place the fishtail part are a support at the fishtail tip and two moveable supports to the side of the fishtail. As the fishtail part is pushed in the long part during the clamping cycle, the tip is guided in the miter cut. As the fishtail is forced in by the clamps, it is also maintained in height at the tip and the sides to hold properly during the nailing operation.
  • Both ends of the clamp have a pneumatic movement. However, one end is moveable for setup purposes only. After the setup is done, one of the ends becomes fixed for the assembly process cycle. During the pressing cycle, one fishtail part pushes against the long side part. This long part is pushing against the other fishtail end.
  • Variable length, width and height option kits: by means of series of pivoting fences on the sides (four positions and shapes) and multiple end stops (6) on revolving heads.

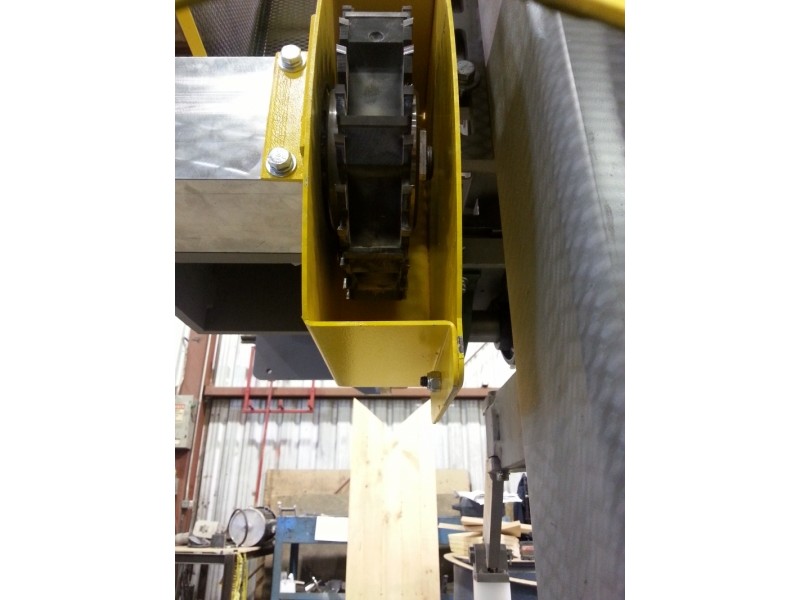

  • Dado module to profile groove inside cover to fix bridge, including an extra set of pneumatic centering clamp at the dado position.
CAT - Cover Assembling Table with Dado Saw
CAT - Cover Assembling Table with Dado Saw
1 2 3 4 5
